LAVA - Interaction between raw material and laser radiation

Laser materials processing

A wide variety of laser types with their respective characteristic radiation properties form a versatile and flexible tool for the precise processing of various materials.

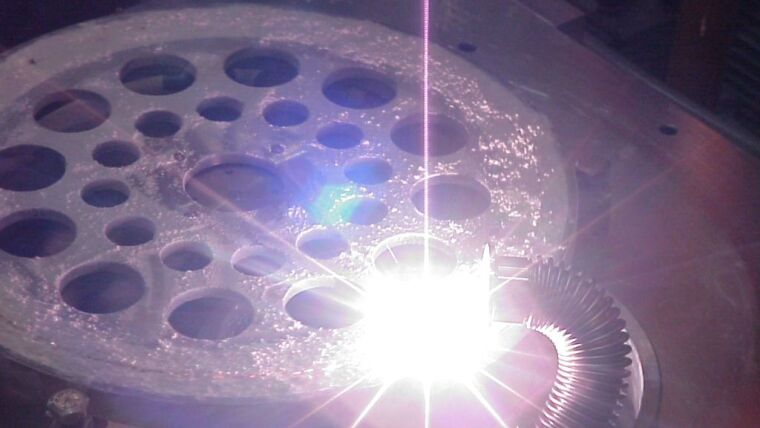

LAVA - Interaction between raw material and laser radiation
Image: CSI/FSU

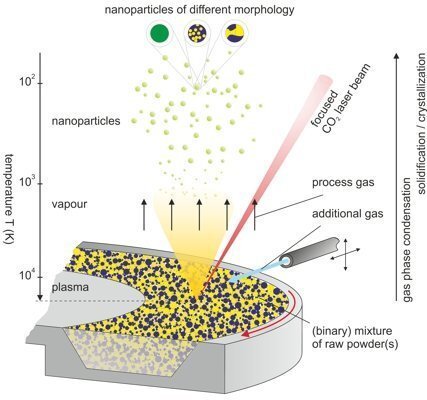

Laser-Co-Vaporisation (CoLAVA) Laser-Co-Vaporisation (CoLAVA) Graphic: Janet Grabow/FSU

Laser vaporization (LAVA)

Functional nano­particles are of increasing importance in the development of hybrid materials for energy and environmental technology and biomedical applications. Our research focuses on the synthesis of functional ceramic nano­particles using the CO2 laser vaporization (LAVA) process.

DOI: 10.1016/j.jeurceramsoc.2011.01.010External link

The highly flexible LAVA method offers the possibility to convert almost any oxidic ceramic compound into nanoparticles and nano­powders. Thus, phase-pure oxides, defined adjustable mixed oxide crystals (e.g. perovskites, spinels) and defect structures (e.g. doped semiconductors) as well as intra-particle dispersion ceramics (e.g. Al2O3-ZrO2) and inclusions of nanocrystallites (e.g. FexOy) in nanostructured glass matrices can be prepared as nanoparticles.

DOI: 10.1038/srep20589External link // DOI: 10.1039/c5nr00845jExternal link

The obtained spherical nanoparticles can be integrated into high-performance composites and hybrid systems by technological production processes. Here, besides conventional and generative processes for the fabrication of nanoporous or dense sintered structures in particular Mother Nature serves as an inspiration for innovative approaches for the synthesis of biomimetic composite structures. The targeted control of material properties combined with the various ways of processing the nanopowders thus opens up completely new possibilities to develop innovative functional and hybrid materials. Their fields of applications include energy technology (e.g. nanoporous electrode materials for lithium-ion batteries or novel semiconductor materials for dye sensitized solar cells), environmental technology (e.g. porous hybrid structures for the photocatalytic purification of water and air in the visible part of the electromagnetic spectrum), and biomedical applications (e.g. piezoelectric materials for bone regeneration, magnetic nanoparticles which can be functionalized with drugs for tumor therapy and diagnostics, or novel functional ceramics for artificial joints).

DOI: 10.1039/D0NR09053KExternal link

Surface modification

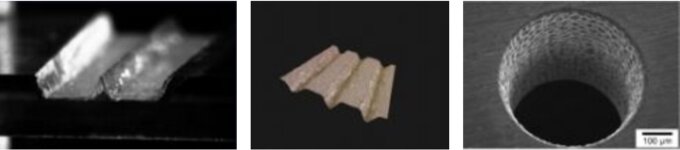

Laser structuring Laser structuring Image: CSI/FSU

Laser structuring

In laser structuring, mainly CO2 and ultra-short pulse lasers as well as special modulation techniques are used to precisely structure material surfaces in the µm and nm range. The basis for this is the detailed investigation of the interaction processes between laser radiation and material. Especially in the field of CO2 laser material processing, a special Q-switched CO2 laser and the modulators already established in many applications provide extensive experimental technology to introduce µm structures into metal, glass, ceramic and polymer surfaces. These structures can then be functionalized by downstream additive manufacturing processes (2-photopolymerization, selective laser sintering) and by the method of pulsed laser deposition on a further hierarchical level.

DOI: 10.1016/j.optlaseng.2014.09.007External link

Laser-induced Periodic Surface Structures (LIPSS) Laser-induced Periodic Surface Structures (LIPSS) Image: CSI/FSU

Laser-induced Periodic Surface Structure (LIPSS)

Another subject of current research is the generation of laser-induced periodic surface structures (LIPSS) by means of ultrashort pulse lasers. LIPSS are formed on the material surface in the focus spot as a result of the interaction with the pulsed laser radiation. The periodic structures are of the same order of magnitude as the wavelength of the laser radiation used, their orientation being determined to a large extent by the direction of polarization. Therefore, a major focus of the investigations is to influence the formation of LIPSS structures on metals, glasses, ceramics, polymers and composites by the defined control of various laser and process parameters (e.g. laser wavelength, polarization state and laser fluence). link

A major focus of the investigations is therefore to influence the formation of LIPSS structures on metals, glasses, ceramics, polymers and composites via the defined control of a wide range of laser and process parameters (e.g. laser wavelength, polarization state and laser fluence) and thus to optimize them for potential applications.

An important basis for this is the fundamental understanding of the formation process of the different LIPSS types, which is still controversially discussed in the literature. A comprehensive summary of the available theories and model ideas was recently published in Laser & Photonics Reviews. link

LIPSS formation results in surfaces with a defined, nanoscale topography, which, in interaction with the chemical properties, results in a variety of functional properties. In addition to a modified absorption, transmission and reflection behavior of the surface, the LIPSS lead to specific structural colors resulting from the diffractive properties of the lattice-like surface structures. Thus, depending on the structure size, it is relatively easy to create anti-reflective surfaces or to secure products against counterfeiting.

Surfaces structured with LIPSS are characterized by a different wetting behavior compared to the original substrate. Strongly wetting, superhydrophilic surfaces are used, for example, for water extraction, whereas the self-cleaning effect also known from the lotus leaf is used for strongly wetting, superhydrophobic surfaces. A main focus of the research group is the generation of defined wetting states (structure gradients, hierarchical structures) in order to realize a directed liquid transport for example for applications in microfluidics (Lab on a Chip).

Gerichtete Flüssigkeitstransport basierend auf Gradientenstrukturen
Video: University of Jena
Gerichtete Flüssigkeitstransport basierend auf Leidenfrost-Effekt
Video: University of Jena
ZnO coating of a carbon fiber by PLD; Appl. Surf. Sci. 399 (2017) 282-287 ZnO coating of a carbon fiber by PLD; Appl. Surf. Sci. 399 (2017) 282-287 Image: CSI/FSU

Pulsed Laser Deposition (PLD)

The PLD process offers a flexible and versatile method of applying functional coatings to any substrate material. With the help of a focused laser beam, the target material is ablated, converted to the plasma state and deposited on an opposite substrate. The main focus of the investigations is the generation of crystalline and amorphous metal oxide layers (e.g. TiO2, ZnO) on smooth and structured surfaces as well as textiles. This allows new approaches for the development of textile dye solar cells or catalytically active textile structures. link

Pulsed Laser Deposition (PLD) - System Pulsed Laser Deposition (PLD) - System Image: CSI/FSU

For this purpose, a powerful Q-switched CO2 laser is used as an energy source, since infrared laser radiation is particularly suitable for ablating ceramic materials. In principle, the coating can be performed under ultra-high vacuum as well as under specific atmospheres (inert and reactive gases). The PLD test facility is equipped with a substrate heater operated with a separate CO2 laser and allows the MAPLE process (Matrix-Assisted Pulsed Laser Evaporation) to be carried out via a nitrogen-cooled target holder. This process can be used to deposit nanoparticles, polymers and biological materials, for example.
